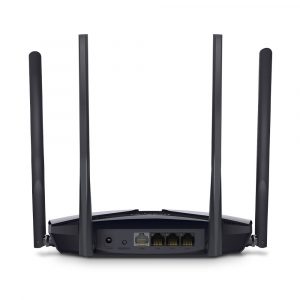

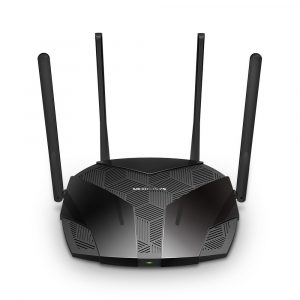

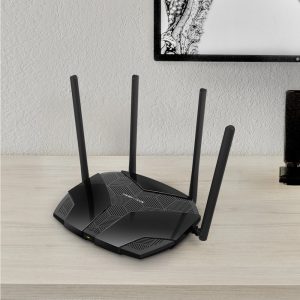

MERCUSYS AX1800 Dual-Band WiFi 6 Router

9,990 Vt

In Stock

SKU: NET-MR70X Categories: ,

Description

  • Next-Gen WiFi 6 Speeds – Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
  • 4× More Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
  • Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  • Overall Security Protection – The latest WPA3 provides improved WiFi security
  • Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  • Eco-Friendly Power Saving – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
  • Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
  • Smart Connect – Intelligently chooses the best available band for each device
  • Access Point Mode – Extends a wired network and makes it wireless

Specification:

Wireless

Wireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
WiFi Speeds
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption
Wireless Functions
Enable/Disable Wireless Radio, WMM

Software

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
SPI Firewall, IP and MAC Address Binding
Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
VPN Passthrough
OpenVPN, PPTP supported

Hardware

Dimensions
8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)
Interfaces
1× Gigabit WAN Port + 3× Gigabit LAN Ports
Button
Reset/WPS Button
Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents
• AX1800 Wi-Fi 6 Router MR70X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
